PLANET ECLIPSE GEO3.1 GREEN/SILVER USED
Color:silver/green
Condition:9/10
Shots:32k

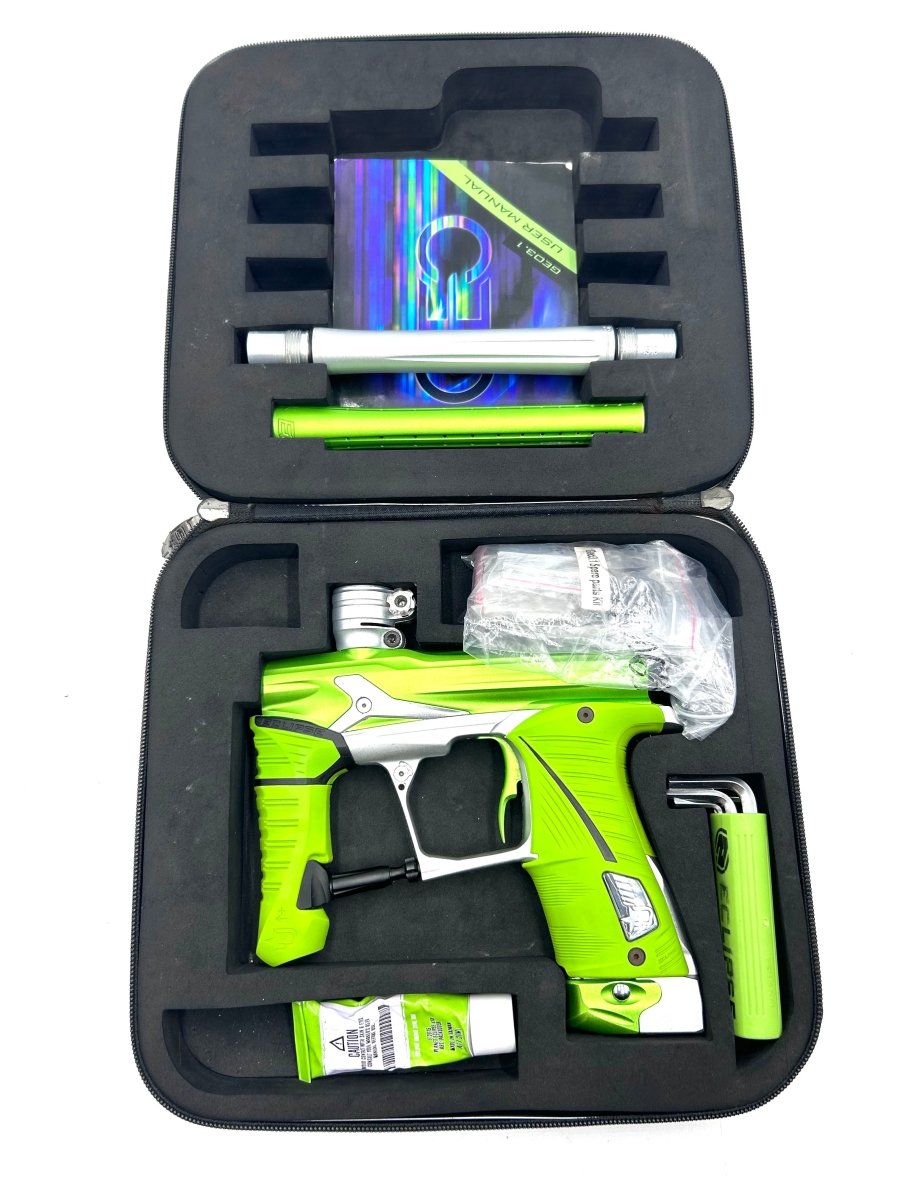

Includes:parts kit, lube, Allen keys
DESCRIPTION:
Smooth, quiet and utterly devastating. The Geo3.1 epitomizes everything that is great about a spool valve single tube paintball marker. That it also offers exceptional efficiency and the trademark Planet Eclipse virtues of bulletproof reliability and ease of maintenance make it a simply unbeatable package.
Now in its third generation, the Geo platform has gained huge popularity amongst tournament and woodsball players alike. Speedball players appreciate the way that the very small amount of barrel rise even during ramping allows them to stay on target longer even when firing single-handedly during rapid reloading. And the efficiency giving them the ability to carry enough paint for even the longest of matches. In the woods, the light weight of the Geo3.1 combines with its incredibly quiet sound signature to make it the perfect companion for those extended periods on the field and for taking those shots when you don’t want to give your position away.
Internally and externally the Geo3.1 utilizes the latest technologies developed by our engineers. The Electronics are fully adjustable via the onboard backlit LCD display and graphical user interface. Or if you prefer, with the optional ePortal kit you can connect the Geo3.1 to your laptop or home PC to adjust parameters, download latest versions of firmware or customize the graphics on the display. Mechanically, the Geo3.1 uses a Custom MAC solenoid valve system that drives the bolt mechanism and controls the filling of the firing chamber. Rather uniquely the speed of the bolt is externally adjustable via a dial on the trigger guard. Selecting a slower bolt speed reduces shot signature and recoil resulting in a soft, quiet shot; where a higher bolt speed will allow devastating rates of fire. The Geo3.1 offers both these options and an infinite range between.
In fact the Geo3.1 is all about giving the user control. For example, there are magnetic and leaf spring trigger return mechanisms as well as micro switch and optical trigger sensing circuits to choose from. Both an all-metal multi-ported bolt and a full rubber-tipped open-face bolt are included with the marker. With so many choices available as standard the user can quickly and easily tailor the feel and performance of the Geo3.1 to their specific requirements and preferences.
New to the Geo3.1 is the AT Pipe system. First designed and implemented on the Ego LV1, the AT Pipe system removes the need for macroline from the POPS ASA to the inline regulator. Instead air is transferred via the AT Pipe from the frame to the new SL4 inline regulator in a way that allows the marker to still be quickly and easily stripped, cleaned and maintained.
Also taken from the Ego LV1 are the supremely comfortable frame design with the fully contoured grips and console. These combine with inline regulator grip and crown to produce an incredibly comfortable yet
stable shooting platform. The combination of sticky rubber and contoured design offer exceptional grip in all conditions.
Of course every single Geo3.1 is constructed using the very best materials possible and meticulously hand built whilst undergoing rigorous inspection and testing at every stage. We do everything possible to ensure that each marker that leaves the facility is as close to perfection as possible.
But it’s on the field where the Geo3.1 earns its stripes. And it’s here were it simply destroys the competition.
Dimensions
Weight: 907g/2.00lb (inc Barrel, Battery, Feed Tube, POPS)
Length: 540mm (inc Barrel) / 202mm / 31mm
Electronics
Interface: 3 Button on frame with tourney lock on PCB
Display: Transflective LCD w/ Tru-Color Adjustable backlite
Solenoid: 5V Custom MAC Solenoid valve
Processor: 3V 16-Bit 16 MIPS
Power Supply: 1 x 9V (PP3) Battery
E-Portal: Compatible (sold separately)
Hardware
ASA Mount: AT POPS
Trigger: Micro-switch and Break Beam Opto-switch
Trigger Pivot: Dual instrument ball race units mounted in bearing carrier
Barrel: 2-Piece Micro Honed Shaft4 14.5" Length 0.689" Bore
Feed Tube: Lever operated Clamping Feed with Sprocket Thumb Wheel
Materials: 6061-T6 Aluminum
Pneumatics
Operating Principle: Spool Valve
Drive Mechanism: Spring Loaded Drive Core Propshaft and GST Can
Bolt Mechanism: Spool Cure ST1 and ST2 Bolts
Dimensions
Weight: 907g/2.00lb (inc Barrel, Battery, Feed Tube, POPS)
Length: 540mm (inc Barrel) / 202mm / 31mm
Electronics
Interface: 3 Button on frame with tourney lock on PCB
Display: Transflective LCD w/ Tru-Color Adjustable backlite
Solenoid: 5V Custom MAC Solenoid valve
Processor: 3V 16-Bit 16 MIPS
Power Supply: 1 x 9V (PP3) Battery
E-Portal: Compatible (sold separately)
Hardware
ASA Mount: AT POPS
Trigger: Micro-switch and Break Beam Opto-switch
Trigger Pivot: Dual instrument ball race units mounted in bearing carrier
Barrel: 2-Piece Micro Honed Shaft4 14.5" Length 0.689" Bore
Feed Tube: Lever operated Clamping Feed with Sprocket Thumb Wheel
Materials: 6061-T6 Aluminum
Pneumatics
Operating Principle: Spool Valve
Drive Mechanism: Spring Loaded Drive Core Propshaft and GST Can
Bolt Mechanism: Spool Cure ST1 and ST2 Bolts
Clamping Deftek Feed Technology ST2 Bolt Break-Beam Sensor System Solenoid Flow Control Bespoke Solenoid Valve Spool Valve Operation Air Supply Filter MIcro & Opto Trigger Setup SL4 'Self Purging' Inline Regulator Ergonomic 3D Contoured Grip & Wrap Around Console On-Board Electronics With Transflective LCD Display Push On/Off Purge System
